Screws

Product Overview

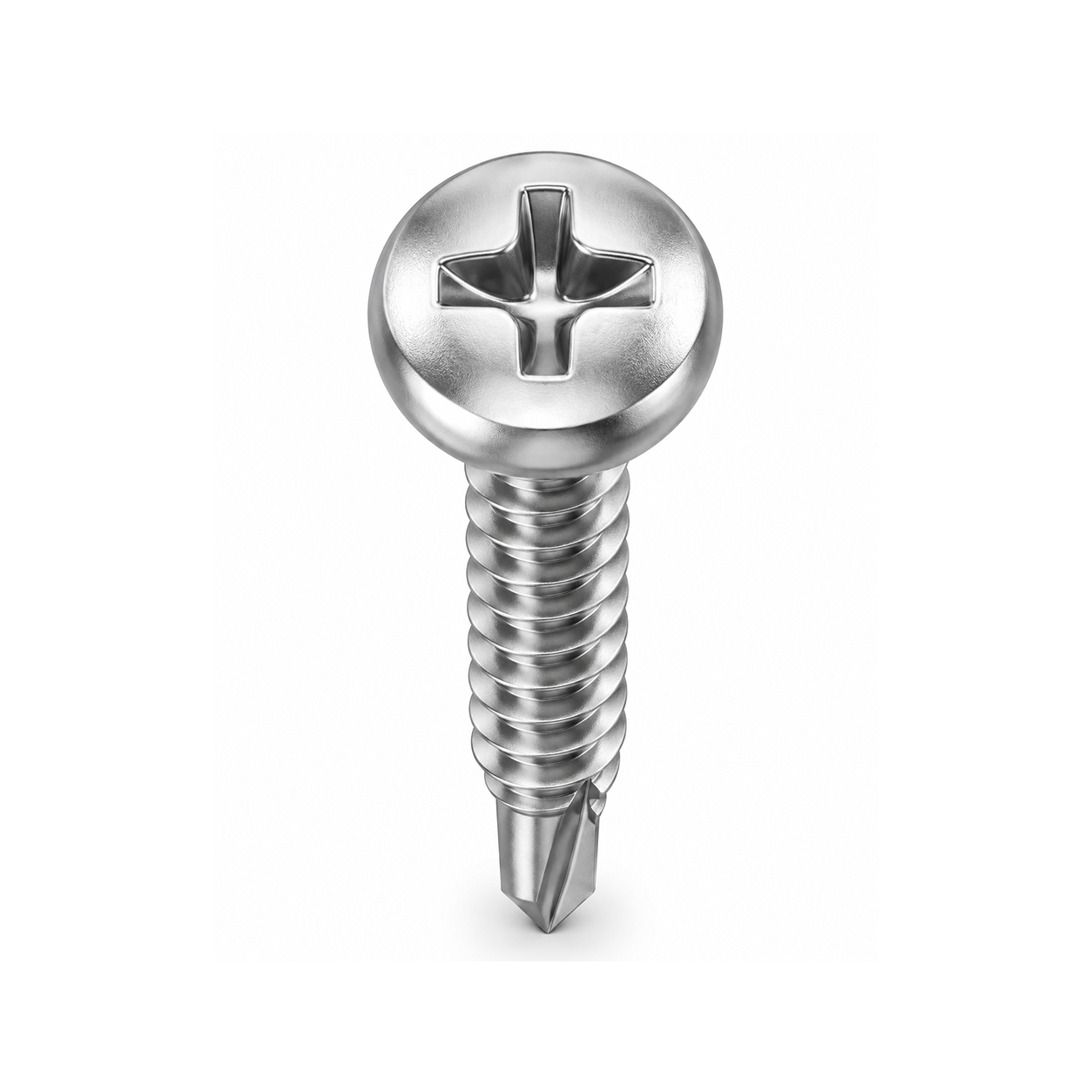

PAN Head Self Drilling Screws are designed to drill, tap and fasten in a single operation, eliminating the need for pre-drilled holes in thin sheets, metal and heavier gauge materials. Their self-drilling point creates the required hole while forming close mating threads, resulting in a secure and reliable fastening system.

These screws help reduce installation time, labour requirements and tooling costs, making them suitable for quick and efficient assembly. The PAN Phillips Head provides a broad bearing surface and is suitable for general fixing applications such as brackets and fittings.

Type Of Sizes

• PAN Phillips Head as per DIN 7504N
• Diameter: 3.5 mm (No. 6)
• Length: 13 mm to 25 mm
• Diameter: 4.2 mm (No. 8)
• Length: 13 mm to 50 mm
• Diameter: 4.8 mm (No. 10)
• Length: 19 mm to 50 mm
